Documentation of Swiss Performing Arts Instantiations model

More details about this document
Latest published version:
none
Editor:

Download serialization:
TTL

1. Abstract

(english) This page documents the structure of the Instantiations data published by the SAPA Foundation. ...

(français) Cette page documente la structure des données des Instantiations publiées par la Fondation SAPA. ...

2. Namespaces

Prefix Namespace
crm http://www.cidoc-crm.org/cidoc-crm/
crypto http://id.loc.gov/vocabulary/preservation/cryptographicHashFunctions/
ebucore https://www.ebu.ch/metadata/ontologies/ebucore#
olo http://purl.org/ontology/olo/core#
premis http://www.loc.gov/premis/rdf/v1#
rda-u http://rdaregistry.info/Elements/u/
rdf http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs http://www.w3.org/2000/01/rdf-schema#
rico https://www.ica.org/standards/RiC/ontology#
skos http://www.w3.org/2004/02/skos/core#
spao http://ontology.performing-arts.ch/
temp http://temp.performing-arts.ch/
vocab http://vocab.performing-arts.ch/
xsd http://www.w3.org/2001/XMLSchema#

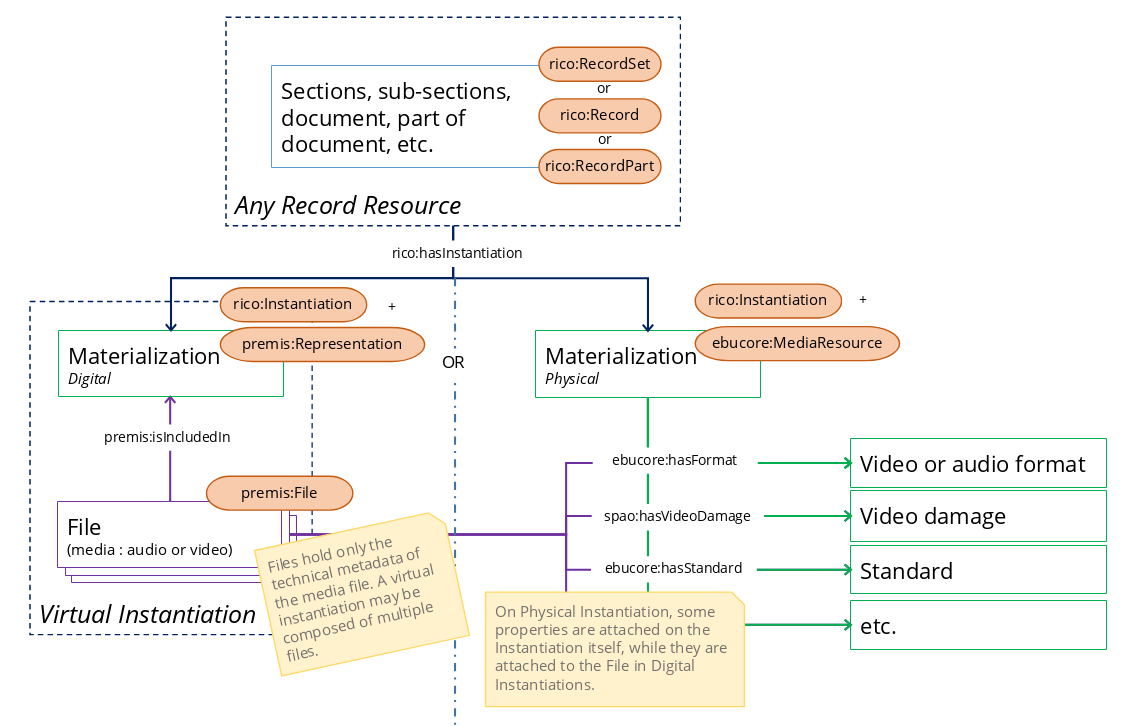

3. Diagrams

4. Main Entities

4.1 Instantiation

http://shapes.performing-arts.ch/instantiations/Instantiation

4.1.1 General description

Targets

4.1.2 Diagram

spao-i:Instantiation (rico:Instantiation)ebucore:duration : xsd:string [0..1]ebucore:height : xsd:string [0..1]olo:index : xsd:integer [0..1]rdf:value : xsd:string [0..1]rico:descriptiveNote : xsd:string [0..1]rico:history : xsd:string [0..1]rico:identifier : xsd:string [0..1]rico:integrity : xsd:string [0..1]spao:hasInternalNote : xsd:string [0..1]spao:hasNote : xsd:stringspao:hasProtectionDuration : xsd:string [0..1]spao:hasResponsibleEmployee : xsd:stringspao:legacyIdentifier : xsd:string [0..1]spao:seeAlso : IRItemp:hasCopyPath : xsd:stringspao-co:SingleDate (rico:SingleDate)spao-co:DateRange (rico:DateRange)spao-co:Date (rico:Date)spao-i:VideoDamagespao-i:CarrierType (rico:CarrierType)spao-i:RecordingSystemspao-i:PreservationStatespao-i:Permissionspao-i:PhysicalUsabilityspao-i:TermsOfProtectionspao-i:DisplayModespao-i:Accessibilityspao-i:RepresentationType (rico:RepresentationType)spao-i:Identifier (rico:Identifier)spao:ArchivalPlacerico:Eventspao-i:Conditionspao:preparationDatespao:hasVideoDamagerico:hasCarrierTyperico:hasDerivedInstantiationspao:lastControl [0..1]spao:recordingSystem [0..1]spao:hasArchivalStatus [0..1]spao:hasPermission [0..1]spao:hasPhysicalUsability [0..1]spao:hasTermsOfProtection [0..1]spao:displayModespao:hasAccessibilityrico:hasRepresentationType [0..1]rico:hasOrHadIdentifierrico:hasOrHadLocationrico:isAssociatedWithEvent [0..1]spao:hasCondition
Click diagram to navigate to corresponding section | View as PNG

4.1.3 Properties

⚠ No other properties than the ones listed in the table below are allowed.
Property name URI Expected value Card.
content description xsd:string
0..1
display mode (Type of) Display mode
0..*
duration (ebucore) xsd:string
0..1
has accessibility Type of Accessibility
0..*
has archival status Type of Preservation State
0..1
➙ For historical reasons, this property is not set on old instantiations, but it is mandatory for new instantiations.
has carrier type Type of Carrier
0..*
➙ Note : the entries in rico:CarrierType vocabulary are also types premis:StorageMedium.
has condition Type of Condition
0..*
has copy path xsd:string
0..*
has derived instantiation Instantiation
0..*
has note (anmerkung) xsd:string
0..*
has note (internal) xsd:string
0..1
has or had identifier (structured) Identifier
0..*
has or had location spao:ArchivalPlace
0..*
has permission Type of Permission
0..1
has physical usability Type of Physical usability
0..1
has protection duration xsd:string
0..1
has representation type Type of Representation
0..1
has responsible employee xsd:string
0..*
has terms of protection Type of Terms of Protection
0..1
has video damage (type) Type of Video Damage
0..*
height xsd:string
0..1
history xsd:string
0..1
identifier (literal) xsd:string
0..1
index xsd:integer
0..1
integrity xsd:string
0..1
is associated with event rico:Event
0..1
last control (date) Date (single)
0..1
legacy identifier xsd:string
0..1
preparation date Date (single) or Date (range) or Date
0..*
recording system Type of Recording System
0..1
see also IRI
0..*
textual content xsd:string
0..1
➙ Text content of the document (used for TLS indexing)

4.2 Physical instantiation

http://shapes.performing-arts.ch/instantiations/MediaResource

4.2.1 General description

Targets
Identifier or value specification

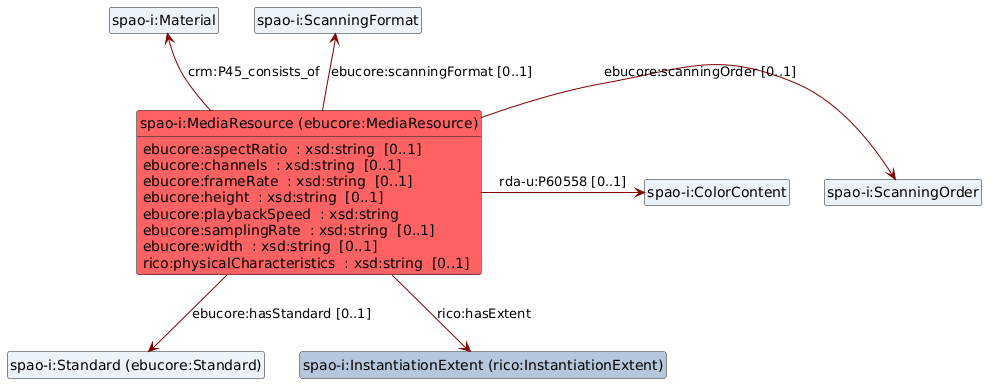

4.2.2 Diagram

spao-i:MediaResource (ebucore:MediaResource)ebucore:aspectRatio : xsd:string [0..1]ebucore:channels : xsd:string [0..1]ebucore:frameRate : xsd:string [0..1]ebucore:height : xsd:string [0..1]ebucore:playbackSpeed : xsd:stringebucore:samplingRate : xsd:string [0..1]ebucore:width : xsd:string [0..1]rico:physicalCharacteristics : xsd:string [0..1]spao-i:ScanningFormatspao-i:Standard (ebucore:Standard)spao-i:ScanningOrderspao-i:Materialspao-i:InstantiationExtent (rico:InstantiationExtent)spao-i:ColorContentebucore:scanningFormat [0..1]ebucore:hasStandard [0..1]ebucore:scanningOrder [0..1]crm:P45_consists_ofrico:hasExtentrda-u:P60558 [0..1]
Click diagram to navigate to corresponding section | View as PNG

4.2.3 Properties

⚠ No other properties than the ones listed in the table below are allowed.
Property name URI Expected value Card.
Properties from Physical instantiation
aspect ratio xsd:string
0..1
channels xsd:string
0..1
color Type of Color Content
0..1
extent Instantiation Extent
0..*
frame height xsd:string
0..1
frame rate xsd:string
0..1
frame width xsd:string
0..1
material Type of Material
0..*
physical characteristics xsd:string
0..1
playbackSpeed xsd:string
0..*
sampling rate xsd:string
0..1
scanning format Type of Scanning Format
0..1
scanning order Type of Scanning Order
0..1
standard Standard
0..1
Properties from Instantiation
content description xsd:string
0..1
display mode (Type of) Display mode
0..*
duration (ebucore) xsd:string
0..1
has accessibility Type of Accessibility
0..*
has archival status Type of Preservation State
0..1
➙ For historical reasons, this property is not set on old instantiations, but it is mandatory for new instantiations.
has carrier type Type of Carrier
0..*
➙ Note : the entries in rico:CarrierType vocabulary are also types premis:StorageMedium.
has condition Type of Condition
0..*
has copy path xsd:string
0..*
has derived instantiation Instantiation
0..*
has note (anmerkung) xsd:string
0..*
has note (internal) xsd:string
0..1
has or had identifier (structured) Identifier
0..*
has or had location spao:ArchivalPlace
0..*
has permission Type of Permission
0..1
has physical usability Type of Physical usability
0..1
has protection duration xsd:string
0..1
has representation type Type of Representation
0..1
has responsible employee xsd:string
0..*
has terms of protection Type of Terms of Protection
0..1
has video damage (type) Type of Video Damage
0..*
height xsd:string
0..1
history xsd:string
0..1
identifier (literal) xsd:string
0..1
index xsd:integer
0..1
integrity xsd:string
0..1
is associated with event rico:Event
0..1
last control (date) Date (single)
0..1
legacy identifier xsd:string
0..1
preparation date Date (single) or Date (range) or Date
0..*
recording system Type of Recording System
0..1
see also IRI
0..*
textual content xsd:string
0..1
➙ Text content of the document (used for TLS indexing)

4.3 File

http://shapes.performing-arts.ch/instantiations/File

4.3.1 General description

Targets

4.3.2 Diagram

spao-i:File (premis:File)ebucore:aspectRatio [0..1]ebucore:channels : xsd:string [0..1]ebucore:duration : xsd:string [0..1]ebucore:frameRate : xsd:string [0..1]ebucore:height : xsd:string [0..1]ebucore:samplingRate : xsd:string [0..1]ebucore:width : xsd:string [0..1]premis:compositionLevel : xsd:string [1..1]premis:originalName : xsd:string [0..1]premis:size : xsd:string [0..1]rdfs:label : xsd:string [1..1]rico:history : xsd:string [0..1]rico:integrity : xsd:string [0..1]spao:seeAlso : IRIspao-i:AudioFormat (ebucore:AudioFormat)spao-i:ContainerFormat (ebucore:ContainerFormat)spao-i:VideoFormat (ebucore:VideoFormat)spao-i:ScanningOrderspao-i:Standard (ebucore:Standard)crypto:md5spao-i:ScanningFormatspao-i:VideoDamagespao-i:Representation (premis:Representation)spao-i:ColorContentspao-co:SingleDate (rico:SingleDate)ebucore:hasFormatebucore:scanningOrder [0..1]ebucore:hasStandard [0..1]premis:fixity [0..1]ebucore:scanningFormat [0..1]spao:hasVideoDamage [0..1]premis:isIncludedIn [1..1]rda-u:P60558 [0..1]spao:lastControl [0..1]
Click diagram to navigate to corresponding section | View as PNG

4.3.3 Properties

⚠ No other properties than the ones listed in the table below are allowed.
Property name URI Expected value Card.
aspect ratio Literal
0..1
channels xsd:string
0..1
color content (P60558) Type of Color Content
0..1
composition level xsd:string
0, 1
1..1
duration (deprecated) xsd:string
0..1
fixity crypto:md5
0..1
frame rate xsd:string
0..1
has audio, video or container format (Type of) Audio Format or (Type of) Container Format or (Type of) Video Format
0..*
has standard Standard
0..1
has video damage (type) (deprecated) Type of Video Damage
0..1
height xsd:string
0..1
history (deprecated) xsd:string
0..1
integrity (deprecated) xsd:string
0..1
is included in Virtual instantiation
1..1
label xsd:string
1..1
last control (deprecated) Date (single)
0..1
original name xsd:string
0..1
sampling rate xsd:string
0..1
scanning format Type of Scanning Format
0..1
scanning order Type of Scanning Order
0..1
see also IRI
0..*
size xsd:string
0..1
width xsd:string
0..1

4.4 Instantiation Extent

http://shapes.performing-arts.ch/instantiations/InstantiationExtent

4.4.1 General description

Targets

4.4.2 Diagram

spao-i:InstantiationExtent (rico:InstantiationExtent)rico:quantity : xsd:string [1..1]rico:UnitOfMeasurementrico:hasUnitOfMeasurement [0..1]
Click diagram to navigate to corresponding section | View as PNG

4.4.3 Properties

⚠ No other properties than the ones listed in the table below are allowed.
Property name URI Expected value Card.
quantity xsd:string
1..1
➙ The quantity of the extent, given either as a integer or a string.
has unit rico:UnitOfMeasurement
0..1
➙ A reference to the "extent unit" controlled vocabulary to indicate the unit of measure of the extent. Example of values are "boxes", "kg", "linear meter", "envelopes", etc.

4.5 Identifier

http://shapes.performing-arts.ch/instantiations/Identifier

4.5.1 General description

Targets

4.5.2 Diagram

spao-i:Identifier (rico:Identifier)rdf:value : xsd:string [1..1]spao-i:IdentifierTypecrm:P2_has_type [1..1]
Click diagram to navigate to corresponding section | View as PNG

4.5.3 Properties

⚠ No other properties than the ones listed in the table below are allowed.
Property name URI Expected value Card.
value xsd:string
1..1
➙ The value of the identifier, as a literal string.
type (Type of) Identifier
vocab:iduni, vocab:idpid, vocab:idcon, vocab:idold, vocab:idtec
1..1
➙ A reference to the type of the identifier, from the "identifier" controlled vocabulary, with values such as "Unique ID", "Old Identifier", "Technical Identifier", etc.

4.5.4 Usage

Instantiation has or had identifier (structured)

4.6 Date (single)

http://shapes.performing-arts.ch/collections/SingleDate

4.6.1 General description

Targets

4.6.2 Diagram

spao-co:SingleDate (rico:SingleDate)rico:dateStandard : xsd:string [0..1]rico:expressedDate : xsd:string [0..1]rico:normalizedDateValue : xsd:string [0..1]skos:Conceptrico:certainty [0..1]rico:dateQualifier [0..1]
Click diagram to navigate to corresponding section | View as PNG

4.6.3 Properties

⚠ No other properties than the ones listed in the table below are allowed.
Property name URI Expected value Card.
certainty skos:Concept
0..1
date qualifier skos:Concept
0..1
date standard xsd:string
0..1
expressed date xsd:string
0..1
normalized date value xsd:string
0..1

4.7 Date

http://shapes.performing-arts.ch/collections/Date

4.7.1 General description

Targets

4.7.2 Properties

⚠ No other properties than the ones listed in the table below are allowed.
Property name URI Expected value Card.
date standard xsd:string
0..1
expressed date xsd:string
0..1
normalized date value xsd:string
0..1

4.8 Date (range)

http://shapes.performing-arts.ch/collections/DateRange

4.8.1 General description

Targets

4.8.2 Diagram

spao-co:DateRange (rico:DateRange)spao-co:SingleDate (rico:SingleDate)rico:hasBeginningDate [0..1]rico:hasEndDate [0..1]
Click diagram to navigate to corresponding section | View as PNG

4.8.3 Properties

⚠ No other properties than the ones listed in the table below are allowed.
Property name URI Expected value Card.
has beginning date Date (single)
0..1
has end date Date (single)
0..1

4.9 Standard

http://shapes.performing-arts.ch/instantiations/Standard

4.9.1 General description

Targets
Identifier or value specification

4.9.2 Properties

Property name URI Expected value Card.
Properties from Standard
in scheme vocab:bs
0..*
Properties from Concept
preferred label rdf:langString
1..*

4.9.3 Usage

Physical instantiation standard
File has standard

4.10 (Type of) Audio Format

http://shapes.performing-arts.ch/instantiations/AudioFormat

4.10.1 General description

Targets
Identifier or value specification

4.10.2 Properties

Property name URI Expected value Card.
Properties from (Type of) Audio Format
in scheme vocab:af
0..*
Properties from Concept
preferred label rdf:langString
1..*

4.11 (Type of) Container Format

http://shapes.performing-arts.ch/instantiations/ContainerFormat

4.11.1 General description

Targets
Identifier or value specification

4.11.2 Properties

Property name URI Expected value Card.
Properties from (Type of) Container Format
in scheme vocab:cf
0..*
Properties from Concept
preferred label rdf:langString
1..*

4.12 (Type of) Video Format

http://shapes.performing-arts.ch/instantiations/VideoFormat

4.12.1 General description

Targets
Identifier or value specification

4.12.2 Properties

Property name URI Expected value Card.
Properties from (Type of) Video Format
in scheme vocab:vf
0..*
Properties from Concept
preferred label rdf:langString
1..*

4.13 Type of Carrier

http://shapes.performing-arts.ch/instantiations/CarrierType

4.13.1 General description

Targets
Identifier or value specification

4.13.2 Properties

Property name URI Expected value Card.
Properties from Type of Carrier
in scheme vocab:fv
0..*
Properties from Concept
preferred label rdf:langString
1..*

4.13.3 Usage

Instantiation has carrier type

4.14 Type of Representation

http://shapes.performing-arts.ch/instantiations/RepresentationType

4.14.1 General description

Targets
Identifier or value specification

4.14.2 Properties

Property name URI Expected value Card.
Properties from Type of Representation
in scheme vocab:rt
0..*
Properties from Concept
preferred label rdf:langString
1..*

4.14.3 Usage

Instantiation has representation type

5. Supportive Entities

5.1 Type of Accessibility

http://shapes.performing-arts.ch/instantiations/Accessibility

5.1.1 General description

Identifier or value specification

5.1.2 Properties

Property name URI Expected value Card.
Properties from Type of Accessibility
in scheme vocab:ac
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.1.3 Usage

Instantiation has accessibility

5.2 Type of Preservation State

http://shapes.performing-arts.ch/instantiations/PreservationState

5.2.1 General description

Identifier or value specification

5.2.2 Properties

Property name URI Expected value Card.
Properties from Type of Preservation State
in scheme vocab:as
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.2.3 Usage

Instantiation has archival status

5.3 Type of Condition

http://shapes.performing-arts.ch/instantiations/Condition

5.3.1 General description

Identifier or value specification

5.3.2 Properties

Property name URI Expected value Card.
Properties from Type of Condition
in scheme vocab:cd
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.3.3 Usage

Instantiation has condition

5.4 Type of Packing

http://shapes.performing-arts.ch/instantiations/Packing

5.4.1 General description

Identifier or value specification

5.4.2 Properties

Property name URI Expected value Card.
Properties from Type of Packing
in scheme vocab:pk
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.5 Type of Permission

http://shapes.performing-arts.ch/instantiations/Permission

5.5.1 General description

Identifier or value specification

5.5.2 Properties

Property name URI Expected value Card.
Properties from Type of Permission
in scheme vocab:pm
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.5.3 Usage

Instantiation has permission

5.6 Type of Physical usability

http://shapes.performing-arts.ch/instantiations/PhysicalUsability

5.6.1 General description

Identifier or value specification

5.6.2 Properties

Property name URI Expected value Card.
Properties from Type of Physical usability
in scheme vocab:pu
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.6.3 Usage

Instantiation has physical usability

5.7 Type of Terms of Protection

http://shapes.performing-arts.ch/instantiations/TermsOfProtection

5.7.1 General description

Identifier or value specification

5.7.2 Properties

Property name URI Expected value Card.
Properties from Type of Terms of Protection
in scheme vocab:tp
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.7.3 Usage

Instantiation has terms of protection

5.8 Type of Video Damage

http://shapes.performing-arts.ch/instantiations/VideoDamage

5.8.1 General description

Identifier or value specification

5.8.2 Properties

Property name URI Expected value Card.
Properties from Type of Video Damage
in scheme vocab:vd
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.8.3 Usage

Instantiation has video damage (type)
File has video damage (type) (deprecated)

5.9 Type of Material

http://shapes.performing-arts.ch/instantiations/Material

5.9.1 General description

Identifier or value specification

5.9.2 Properties

Property name URI Expected value Card.
Properties from Type of Material
in scheme vocab:zj
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.9.3 Usage

Physical instantiation material

5.10 Type of Color Content

http://shapes.performing-arts.ch/instantiations/ColorContent

5.10.1 General description

Identifier or value specification

5.10.2 Properties

Property name URI Expected value Card.
Properties from Type of Color Content
in scheme vocab:cl
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.10.3 Usage

Physical instantiation color
File color content (P60558)

5.11 Type of Recording System

http://shapes.performing-arts.ch/instantiations/RecordingSystem

5.11.1 General description

Identifier or value specification

5.11.2 Properties

Property name URI Expected value Card.
Properties from Type of Recording System
in scheme vocab:zf
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.11.3 Usage

Instantiation recording system

5.12 Type of Scanning Format

http://shapes.performing-arts.ch/instantiations/ScanningFormat

5.12.1 General description

Identifier or value specification

5.12.2 Properties

Property name URI Expected value Card.
Properties from Type of Scanning Format
in scheme vocab:sf
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.12.3 Usage

Physical instantiation scanning format
File scanning format

5.13 Type of Scanning Order

http://shapes.performing-arts.ch/instantiations/ScanningOrder

5.13.1 General description

Identifier or value specification

5.13.2 Properties

Property name URI Expected value Card.
Properties from Type of Scanning Order
in scheme vocab:so
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.13.3 Usage

Physical instantiation scanning order
File scanning order

5.14 (Type of) Display mode

http://shapes.performing-arts.ch/instantiations/DisplayMode

5.14.1 General description

Identifier or value specification

5.14.2 Properties

Property name URI Expected value Card.
Properties from (Type of) Display mode
in scheme vocab:ar
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.14.3 Usage

Instantiation display mode

5.15 (Type of) Identifier

http://shapes.performing-arts.ch/instantiations/IdentifierType

5.15.1 General description

Identifier or value specification

5.15.2 Properties

Property name URI Expected value Card.
Properties from (Type of) Identifier
in scheme vocab:id
0..*
Properties from Concept
preferred label rdf:langString
1..*

5.15.3 Usage

Identifier type

5.16 Concept

http://shapes.performing-arts.ch/instantiations/Concept

5.16.1 General description

5.16.2 Properties

Property name URI Expected value Card.
preferred label rdf:langString
1..*
